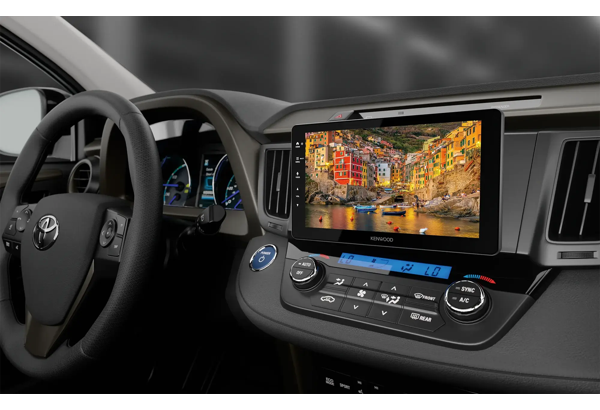

DMX-F920DS
1DIN Digital Multimedia Receiver with Floating, 9.0" High Definition Display Panel & Enhanced Wireless Smartphone Connections.
Nøgle Funktioner
| 9.0" High Definition screen with high luminance LED backlight and superior wide viewing angles. |
| 360° Fully Adjustable Floating Mechanism |
| Wired & Wireless CarPlay® & Android Auto™, the ideal way to use your smartphone in the car. |
| Wired & Wireless Screen Mirroring with CarbitLink-EasyConnection app for IOS & Android |
| DAB+ Digital radio tuner for noise & interference free, crystal-clear digital stereo sound, |
| Built-in Bluetooth® technology for Handsfree calling & Audio Streaming. |
| High Speed USB Type-A terminal for your compatible USB- enabled devices. (2.1A Max) |
| 3 Preouts (3.0V) to customize & upgrade your audio system |
| 13 Band EQ & Digital Time Alignment to optimize the sound performance |
| Rear View Camera Input with Parking Guidelines, compatible with HD camera |
| 1DIN Short Chassis Design for more flexible installation |
Monitor Funktioner
| Skærm type | 9.0" High Definition screen |
| Display Panel | Capasitiv |
| Display film | Anti fingeraftryk |
| High Definition Display | Ja |
| LCD baggrundslys | Hvid LED |
| Display Mode | 3 Mode (Full(default)/Auto/Normal) |
| Skærm justering | Colour / Contrast / Backlight |
| Lysdæmper funktion | SYNC by Illumination line |
| Dimmer Level | Auto/On/Off |
| Visuel source mode | Mirorring / CarPlay / Android Auto. |
| Mekanisme type | 360°Fully Adjustable Floating Mechanism |
| NTSC/PAL | Ja(AUTO) |
| Display Off Mode | Ja |
Multimedia GUI Funktioner
| OSDC Type | Grafisk |
| Menu tekst | available languages:
► English(UK)(Default)
► English(US)
► Spanish
► French
► German
► Italian
► Dutch
► Portuguese
► Arabic
► Greek
► Polish
► Czech
► Hungarian |
| Demonstrations menu | Ja |
| Top menu tilpasning | Ja |
| Skærmtype åbning | KENWOOD |
| Baggrund tilpasning | Preset x4 |
| Bakkamera afbrydelse | Ja |
| Parkerings assistance / parkeringsfelt | Ja, Indbygget , justerbart |
Netværk & WiFi funktioner
Generelle bluetooth funktioner
CE_lydfil, der kan afspilles
CE_afspillelige Video filer
USB Funktioner
| USB type | Type-A (2.0 High speed) |
| Ja |
| Drev skift | Ja |
| Fil system | FAT16 / FAT32 / exFAT / NTFS |
| Android Auto | Ja |
| Virker med Apple CarPlay | Ja |
| USB Screen Mirroring | with CarbitLink-Easy Connection app |
| Tag informationsvisning | Ja |
| Album kunstner visning | Ja |
| Repeat afspilning | Album/fil/alle |
| Random afspilning | Arkiv |
| Kategori søgning | Ja |
| Link Search | Ja |
| Genoptag afspilning | Ja |
| Tidskode display | Ja |
| USB ports maximum output current | 2.1A |
iPod Funktioner
| Forbindelse via | USB / Bluetooth |
| Plug & Play | Ja |
| Tilvirket Ipod | Ja |
| Tag informationsvisning | Ja |
| Time Code Display | Ja |
| Liste adgang | Ja |
| Album art support | Ja |
| Random afspilning | Ja |
| Repeat afspilning | Ja |
| Skip | Ja |
| iAP over Bluetooth | Ja |
| Apple CarPlay | Wired & Wireless |
Audio Funktioner
| Max. Output Power | 4 x 50W |
| Primary Power Output | 4 x 22W |
| Pre-out | 3RCA: Front/Rear/Subwoofer |
| Pre-out output niveau | 3V |
| Volume Offset | Ja |
| Volume Type | DSP |
| Built-in Amplifier Off | Ja |
| Balance/Fader kontrol | Ja |
| Beep tændt/slukket | Ja |
Multimedia DSP Funktioner
| Positions kontrol | Ja |
| Forudindstillet position | 4 forudindstillinger |
| G-EQ | 13 bands |
| G-EQ manuel indstilling | Ja |
| G-EQ justerbar niveau | Ja, +9dB / -9dB |
| Tids forskydning lyd | 0 ~ 610cm |
| HPF Cut Off frekvens | 14 steps |
| HPF Cut Slope niveau | 5 trin |
| Lav pass filter | Ja (ingen-fading) |
| LPF Cut Off frekvens | 14 steps |
| LPF Cut Slope niveau | 5 trin |
| X'over | Ja |
| Højttaler størrelses kontrol | Ja |
| Kanal niveau kontrol | Ja |
| Loudness | Ja |
| Tweeter volume | Ja |
| Bas Boost | Ja |
| Kilde Volume Offset | kilde uafhængig |
Tuner specifikationer
| FM rækkevidde: 87.5Mhz - 108MHz (50Khz step) | Ja |
| FM minimum følsomhed | 1,8μV/75ohm (S/N 30dB) |
| FM frekvensgang | 30Hz ~ 14kHz (± 3dB) |
| FM signal støjforhold (mono) | 75dB |
| FM stereo separation (1kHz) | 40dB |
| MW område: 531kHz - 1611kHz (9kHz step) | Ja |
| MW minimum følsomhed | 29μV |
DAB tuner specifikationer
| Bånd III frekvensområde | 174,928 MHz - 239,2MHz |
| Mode | Band III |
| Følsomhed | - 98dBm |
| Signal støjforhold | 78dB |
| Audio format | MPEG1 Audio Layer II, MPEG4 HE-AAC v2 |
| Output spænding | 14V (10,5V to 16V tilladeligt) |
| Maksimum strømforbrug | < 100 mA |
Bluetooth Specifikationer
| Teknologi | Bluetooth V5.3 |
| Frekvens | 2,402 - 2,48 GHz |
| Sende effekt | +9 dBm (max), Power Class 1 |
| Maksimum rækkevidde | Fugleflugtlinie ca.10 meter |
| Håndfri profil (HFP) | Ja, V1.7 |
| Seriel port profil (SPP) | Ja, V 1.2 |
| Advanced audio distribution profile (A2DP) | Ja, V 1.4 |
| Audio Codec | SBC/AAC |
| Audio/Video remote control profile (AVRCP) | Ja, V1.6 |
| Phonebook access profile (PBAP) | Ja, V1.2 |
USB Specifikationer
| Kompatibel med USB version | USB 2.0 High Speed |
| Fil system | FAT 16/32 / exFAT / NTFS |
| Maximal strømforsyning | 2100mA |
| D/A konverter | 24bit |
| Video dekoder | MPEG1/2/4, WMV, H.264, mkv |
| Lyd dekoder | MP3, WMA, AAC, WAV, FLAC |
Audio specifikationer
| Maksimal effekt | 50 W x 4 |
| Udgangseffekt (DIN45324,+B=14.4v) | 22 W x 4 |
| Output frekvens bånd | 20 Hz ~ 20 kHz |
| Preout niveau | 3000mV / 10kOhm, |
| Preout Impedance | ≤ 300Ohm |
| Højttaler impedance | 4Ohm ~ 8Ohm
|
Video specifikationer
| Farvesystem for eksten video input | NTSC/PAL |
| Ekstern video input niveau (mini-jack) | 1 Vpp / 75 Ohm |
| External audio max. input level (mini-jack) | 1,5 Vpp / 10 kOhm |
| HD camera Support | HD-TVI Standard • 1280x720px / 30fps |
| Video output niveau (RCA) | 1 Vpp / 75 Ohm |
| Audio Output niveau (RCA) | 3 Vpp / 10 kOhm |
| HDMI - Supported Input Resolutions (4:3 ratio) | 640x480-60Hz / 720x480-60Hz |
| HDMI - Supported Input Resolutions (16:9 ratio) | 720x480-60Hz / 1280x720-60Hz |
| HDMI- input audio type | 16/20/24-bit Linear PCM |
Monitor specifikationer
| LCD type | High Definition screen |
| Minitor størrelse diagonalt | 9 Inches bred (x 2,54 = cm) |
| Monitor størrelse | 198,91 x 111,89mm |
| Display system | Transparent TN LCD Panel |
| LCD virkemåde | TFT Aktiv Matrix System |
| Antal pixel | 2764800pixels (1280(H) x 720(V) x RGB) |
| Effektive pixels | 99,99% |
| Pixel opbygning | RGB Striped |
| Baggrundslys | LED (Light Emitting Diode) |
Generelle specifikationer
| Spændings område i funktion | 14,4V (8,5 ~ 16V Allowable) |
| Maksimum strømforbrug | 15A |
| Dimensions Monitor unit (WxHxD) | 240 x 140 x 31mm |
| Weight Monitor unit | 0,66 kg |
| Dimensions chassis Unit (WxHxD) | 178 x 50 x 120mm |
| Weight chassis unit | 0,94 kg. |
| Enhed total vægt | 2,44 kg |
